8cbm Sinotruk Howo Waste Compactor Garbage Truck Diesel Fuel

Product Categories

Shandong Heavy Industry Machinery Co.,Ltd.

Contact Now

Name: 8cbm Sinotruk Howo Waste Compactor Garbage Truck Diesel Fuel
Brand: SINOTRUK
Price: 1 USD

Brand Name : SINOTRUK

Model Number : ZZ1167M4611W

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000pcs/year

Delivery Time : Full Payment 7-15 Work Days

Packaging Details : by Sea/by Bulk/by Frame/Container

Fuel type : Diesel

Gearbox : WLY6T51 （6 forwards &1 reverse）

Max speed : 90km/h

Engine : YC4E140-20

Fuel tank : 230L

Tyres : 8.25R20

Contact Now

Sinotruk Howo Garbage Truck 8cbm Compressor Garbage Truck Garbage Compactor Truck

Product Advantage

1 Dual operation both at the rear of HOWO 4x2 compactor garbage truck and inside cabin , easy control

2 Famous brand hydraulic pump to drive hydraulic valve to keep garbage compactor truck safety

3 Cheap price , one year warranty

4 Garbage bin lifting system could design as customer’s requirement .

5 Lock system is operated by machinery hydraulic system can reduce second pollution mostly.

Product Parameter

Cabin	Driving type 4x2
	2080 Standard cab, with three seats, with A/C. Left/Right Hand Driven. 70°hydraulically tillable to the front as attached photo for ref.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm		8000x2450x3100
	Wheel base (mm)		4500
	Wheel track (front/rear) (mm)		1798/1764
	Approach/Departure angle(°)		27/20
Weight in KGS	Tare Weight		6400
	Loading Capacity		5000
	Front axles loading capacity		1x3200
	Rear axles loading capacity		1x8200
Max. driving speed(km/h)			90
Engine	Brand		YUCHAI
	Model		YC4E140-20
	Type		4-stroke direct injection , 4-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		140 HP
	Emission standard		Euro Ⅱ
Gearbox	WLY6T51 , 6 forwards &1 reverse
Clutch	Diaphragm spring clutch
Steering Gear	Power steering
Fuel tank (L)	230 L
Tire	8.25R20 All radial tires with one spare, 7 pieces
Compression garbage box body system
Body Volume		8 CBM
Cycle Time of Filling(S)		≤40
Lifting Time of Filler(S)		8-10
Time of Discharging		≤60
Working Pressure(MPA)		16
Composed by hermetic garbage tank, hydraulic system, operation system. The entire truck is hermetic, can automatically compress and dump the garbage .and the sewage generated in the process of the compression all go into the sewage tank.

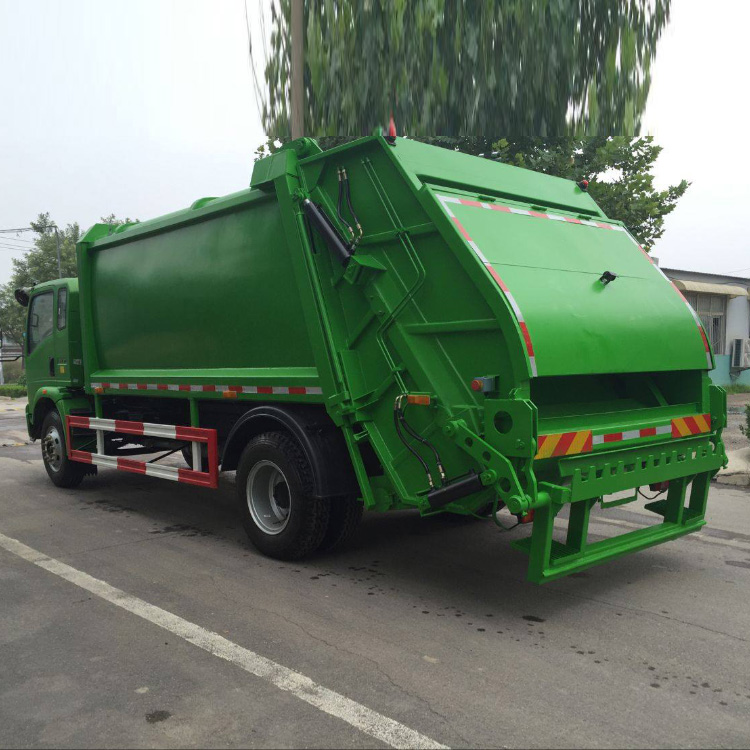

Product Photos

8cbm Sinotruk Howo Waste Compactor Garbage Truck Diesel Fuel
